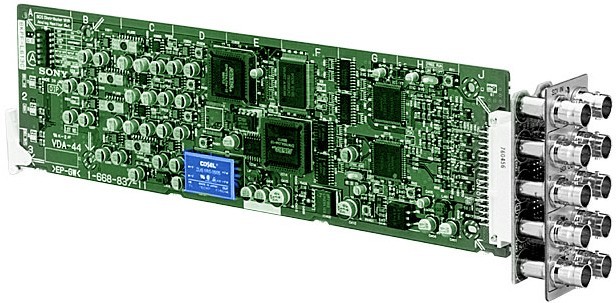

Sony BKPF-L613C

The BKPF-L613C monitoring SDI distribution board accepts a 525/625 component serial digital video signal and distributes it to four outputs. An active loop-through output of the input signal is also provided.

A D to A converter also provides four analog outputs for monitoring purposes. These monitoring outputs can provide either four composite signals, or a single composite output plus a YUV or RGB output. The output cable length can be up to 200 m (Belden 8281, Fujikura 5C2V or equivalent cable).

The BKPF-L Series function boards install in the PFV-L Series Interface Units in any combination with other BKPF-L Series function boards.

• Analog video monitoring outputs (composite analog, Y/U/V or R/G/B component analog).
• Active through output.
• Supports EDH.
