Sony HKSP-105

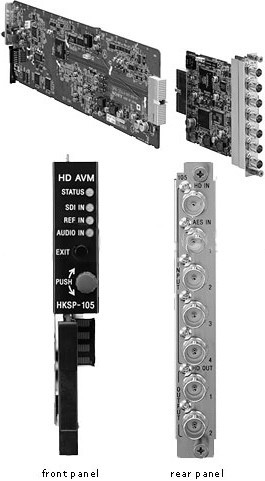

The HKSP-105 Audio-Video Multiplexer Board is designed to multiplex (4) AES/EBU digital audio signals (8 channels) with an HD SDI video signal. The unit provides (2) outputs of the multiplexed signal. An additional (4) signals and a total of (16) channels can be achieved by cascading (2) HKSP-105 boards. Installs in PFV-SP Series Signal Processing Units in any combination with other HKPF-SP/HKSP function boards.

The audio delay of this unit is adjustable up to a maximum of (2) video frames. Auto selection of HD multi-format is a standard feature. This unit also masks and retains HANC area and embedded audio data, transfers UMID and VITC data, and provides a simple signal generator. External reference input is provided as PFV-SP Series Signal Processing Unit. The board may be controlled through your system or remotely through an optional UCP-8060 Universal Control Panel (Ethernet 100BASE-TX).

AES/EBU Multiplexed with HD SDI Signal
This board is designed to multiplex (4) AES/EBU digital audio signals (8 channels) with an HD SDI video signal.

(2) Outputs
The unit provides (2) outputs of the multiplexed signal.

Expansion
An additional (4) signals and a total of (16) channels can be achieved by cascading (2) HKSP-105 boards.

Adjustable Audio Delay
The audio delay of this unit is adjustable up to a maximum of (2) video frames.

Control
The board may be controlled through your system or remotely through an optional UCP-8060 Universal Control Panel (Ethernet 100BASE-TX).
