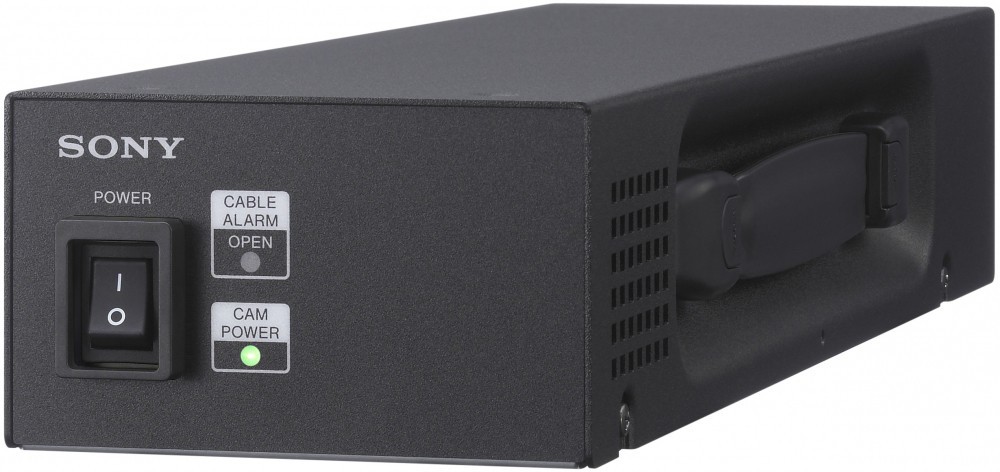

Sony HXCE-FB70

Extends fibre connection from 250m to 10km
The HXCE-FB70 is an extension module for the fibre connection between the CA-FB70 optical fibre adaptor and HXCU-FB70 optical fibre CCU. It receives power via a fibre from the HXCU-FB70. It then connects to the CA-FB70 with a single mode fibre cable. In this case, it can extend the extension distance from 250m to 250m + 10km if the CA-FB70 is powered locally. The HXCE-FB70 is designed to work with the HXC-D70 and PMW-320/350/500 camcorders.

Full HD picture quality and connection for all signals
The HXCE-FB70 provides the excellent picture images as well as flexible integration and the possibility to extend the operation with all signals (Tally, Intercom, Video Return and Prompter) in full HD.

• Optical fibre connection
• Connection for all signals
• Very compact design and lightweight
• Operates with CA-FB70 and HXCU-FB70 for greater flexibility
• Connector options
The HXCE-FB70 is supplied with 2x optical CON DUO connectors as standard. An optional modification allows the installation of NeutrikLemo SMPTE HKC-LC02 connectors.
