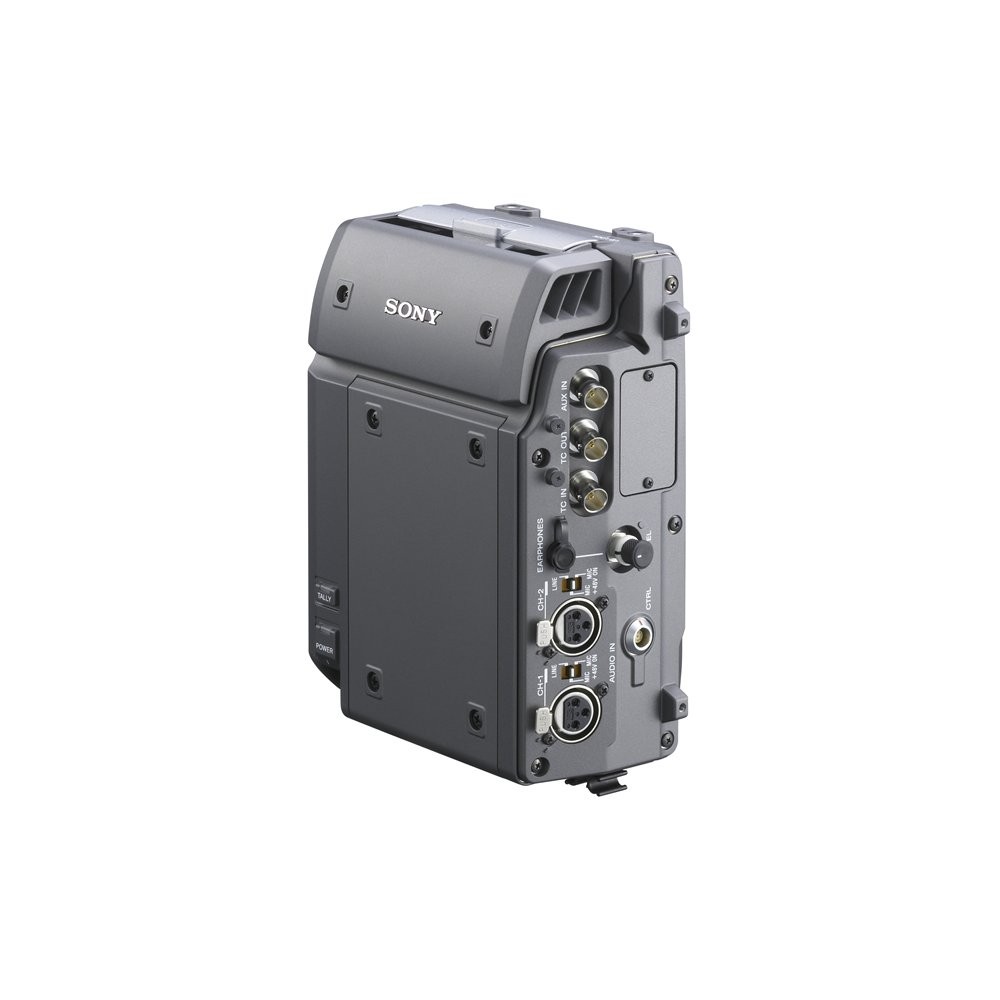

Sony SR-R4
SRMASTER Portable Memory Recorder for F65 Camera.
The SR-R4 is a portable memory recorder specifically designed for Sony's F65 cinematography camera. It takes full advantage of the ultra high-speed SRMemory platform to record super-rich RAW data from the F65 at speeds as fast as 5 Gbps. Together with the newly developed, state-of-the-art image sensor of the F65, the SR-R4 delivers amazing, never-seen-before image quality.
The SR-R4 records on to SR-MC Series SRMemory media. These are revolutionary memory media for the most demanding cinematography, live studio and post production applications, including 3D. The SR-MC Series feature huge transfer speeds of up to 5 Gbps and massive data capacity.

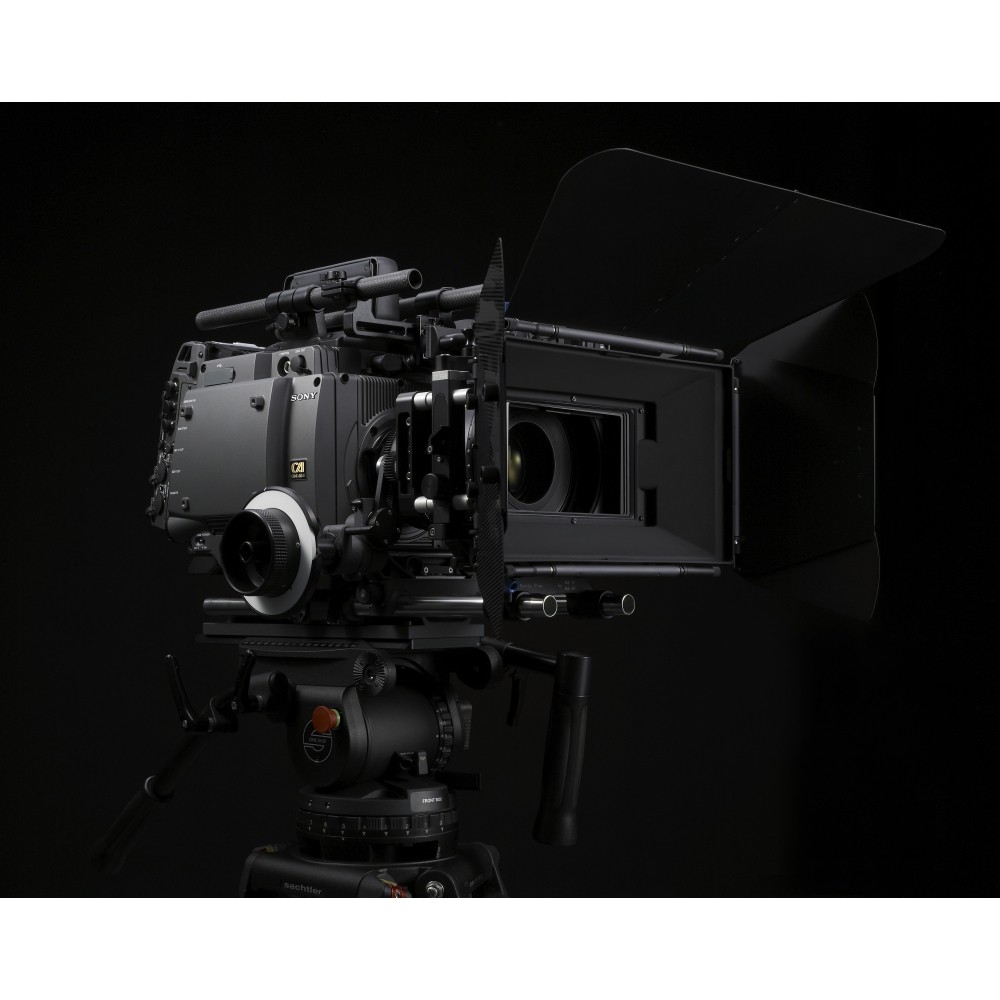

The F65 is a top-end motion picture camera. It achieves a step-change in sensor technology, using a 20.4 Mega pixel CMOS sensor and a unique Double Bayer pixel orientation for full green resolution.
• Direct Docking to F65 4K Camera
The SR-R4 has an multi-pin interface to dock directly on to the F65 CineAlta camera. The F65 and SR-R4 combination is small and easy to handle.
• 4K 16-bit Double Bayer RAW Recording
The SR-R4 records 4K Double Bayer 16-bit RAW data and 2K RAW high frame rate data for the highest quality uncompressed recordings.
• 2K RAW High-Frame Recording
Select FPS -- variable frame rate image capturing - from 1 FPS to 60 FPS in 4K mode, and 1 FPS to 120 FPS in 2K mode.
• SRMemory Recording
The SR-R4 records on to SR-MC SRMemory Cards, offering massive data capacity and huge sustained transfer rates. SRMemory is unique with its combination of capacity, sustained data throughput, security and portability. It opens up completely new ways for creatives to work.
SRMemory Cards are available in capacities of 256 GB, 512 GB and 1 TB, combining massive storage capacity with unrivalled levels of data security. The cards can record and replay multiple streams simultaneously and support data rates that can handle up to 4K.
SRMemory Cards offer huge transfer speeds - up to 5 Gbps for faster transfer of data in post production and for ultra-fast cloning of data on-set.
• 16 Channels 24-bit Audio
• Timecode In/Out
| STORAGE TEMPERATURE | -20°C to +60°C -4°F to +140°F |
|---|---|
| OPERATING TEMPERATURE | 0°C to 40°C 32°F to 104°F |
| DIMENSIONS | (W x H x D) *1 141 x 89 x 190 mm (excluding protrusion) 5 5/8 x 3 5/8 x 7 1/2 inches (excluding protrusion) |
| POWER CONSUMPTION | Approx. 37 W (when recording at F65RAW 23.98PsF mode) |
| POWER REQUIREMENT | 11 to 17 V DC |
| RECORDING FORMAT(S) | F65RAW |
| MASS | 1.8 kg (excluding control panel and SRMemory card) 3 lb 15 oz (excluding control panel and SRMemory card) |
Standard Manufacturer's Warranty
