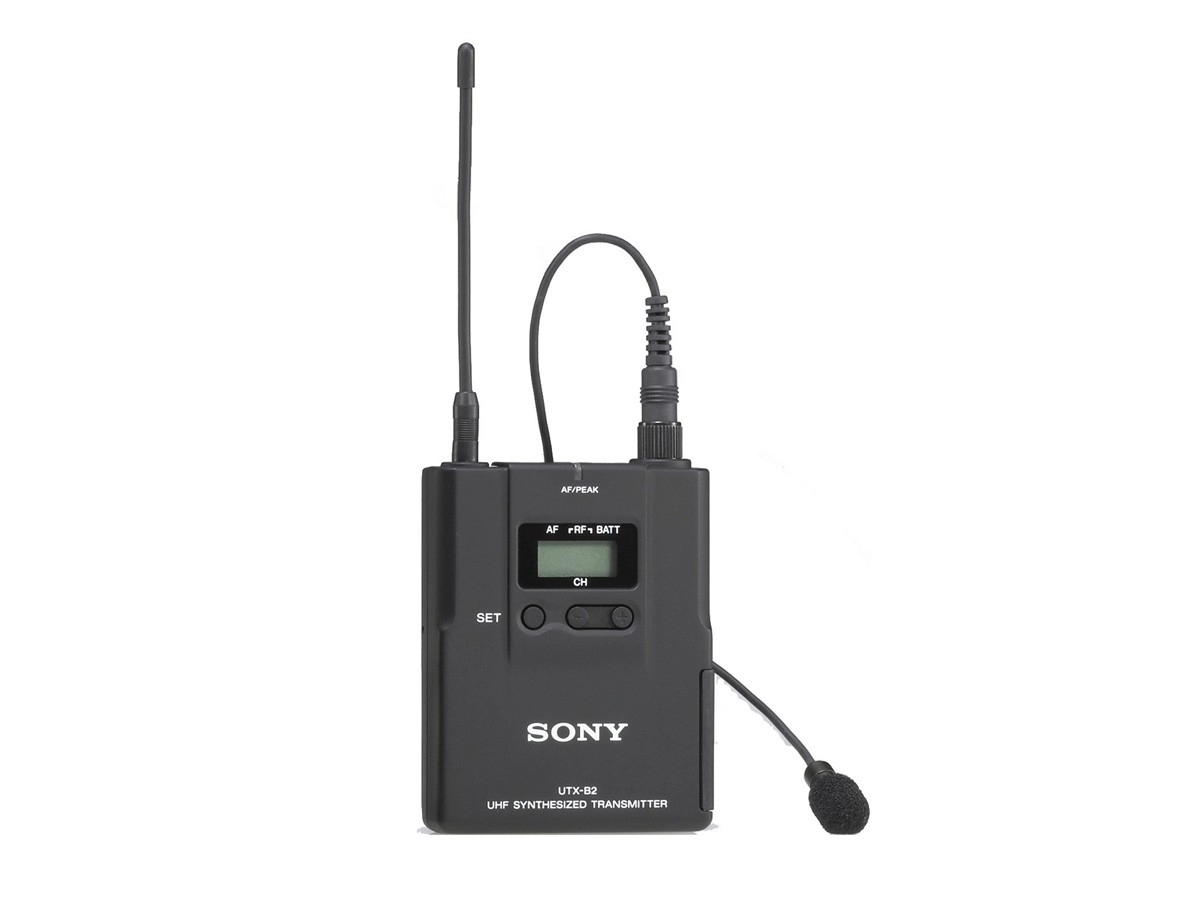

Sony transmitter UTX-B2

UWP Belt-Pack Transmitter.

The UTX-B2 compact and lightweight belt-pack transmitter comes supplied with an omni-directional lavalier microphone. The UTX-B2 belt-pack transmitter works with any of the UWP receivers operating within the same frequency band. The attenuator function permits the user to adjust the audio input level to the belt-pack transmitter to suit the vocal characteristics.The UTX-B2 unit operates on AA batteries as opposed to the traditional 9 volt (PP3). This reduces running costs to the user. A surprising amount of money can be saved over a very short period of time. Running costs are not always considered when choosing a wireless microphone system.

Key Features

  • New Design
  • All metal body
  • Backlit LCD display to provide the user with detailed status information.
  • Selectable RF output level
  • Pre-programmed channel plans

Models

UTX-B2/62 798 MHz to 822 MHz (covering TV Channels 62-64)
UTX-B2/K38 606 MHz to 630 MHz (covering TV Channels 38-40)




RF POWER OUTPUT 30 mW/5 mW
OPERATING FREQUENCY BAND 24 MHz BW (CE)
WEIGHT Approx. 145g (5.1oz)
FREQUENCY RESPONSE 40 Hz - 18 kHz
BATTERY Life: Approx. 8hours with Sony AA-size alkaline (LR6) batteries at 25 degrees C (77 degrees Farenheit ) at 30 mW output
AUDIO INPUT Connector: 3-pole mini jack
DIMENSIONS (WXHXD) 63 x 82.5 x 18.7 mm (2 1/2 x 3 1/4 x 3/4 inches) excluding antennas
ATTENUATION (PASSIVE) Audio Adjustment Range: 0 - 21 dB (in 3 dB steps)
POWER REQUIREMENT DC 3.0 V (two LR6/AA size alkaline batteries)




• Standard Manufacturer's Warranty
• Lavalier Microphone (1)
• Lavalier Windshield (1)
• Lavalier Clip (1)
• Belt Clip (1)
• Instruction manual (1)
