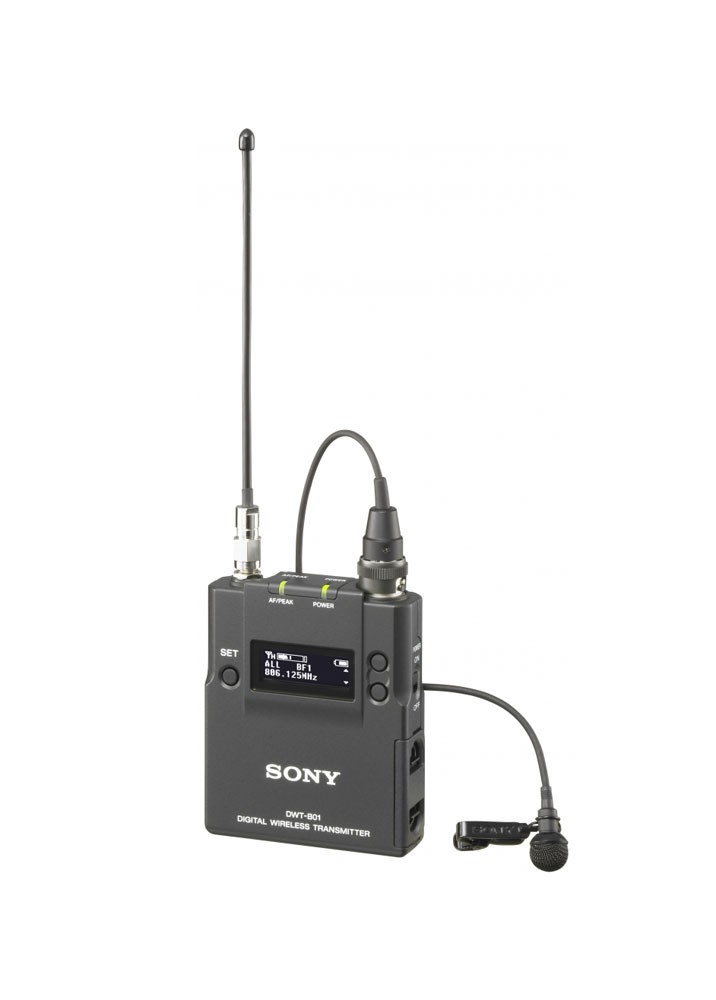

Sony wireless bodypack transmitter DWT-B01/E 33, 42, 51, 6267

Digital Wireless Microphone Transmitter

The DWT-B01 Digital wireless microphone system that offers high-quality full-digital operation and enhanced system performance.It consists of the DWT-B01 beltpack transmitter and the DWR-S01D dual portable tuner, delivers excellent-quality wireless transmission of 24-bit/48-kHz digital audio and it realises low-latency, secure, and reliable operation. In addition, the system allows for an increase of up to 60% in the number of simultaneous multi-channel operations compared to conventional analogue systems, which gives users enhanced system flexibility.

Key Features

  • Low noise head amplifier achieves -128dBu noise floor.
  • Flexible audio input control
  • Flexible battery options
  • Selectable output power
  • Versatile display using organic LED display
  • Wireless remote control
  • Can operate over a 72Mhz frequency band. (8 x TV Channels).

Models

DWT-B01/E33 566MHz - 630MHz (covering TV Channels 33-40) - $ 1490
DWT-B01/E42 638MHz - 710MHz (covering TV Channels 42-50) - $ 1490
DWT-B01/E51 710MHz - 782MHz (covering TV Channels 51-59) - $ 1490
DWT-B01/E6267 Digital Wireless Transmitter - $ 1490






RF POWER OUTPUT 1 mW/10 mW/50 mW (e.r.p.) selectable
CONNECTORS Input: SMC9-4S (Sony 4-pin) (x1)
INPUT IMPEDANCE 4 k
OSCILLATOR TYPE Crystal controlled PLL synthesizer
WEIGHT Approx. 125 g (4 oz) including batteries
DIMENSIONS (WXHXD) 63 x 73 x 17 mm (2 1/2 x 2 7/8 x 11/16 inches) excluding projection
INPUT LEVEL max: MIC -22 dBu (with 0 dB attenuator), LINE +24 dBu
OCCUPIED BANDWIDTH RF: 192 kHz
VOLTAGE Operating: DC 3.0 V, (two LR6 AA-size alkaline batteries)




• Standard Manufacturer's Warranty
• Input cable
• Instructions
• USB Cable
