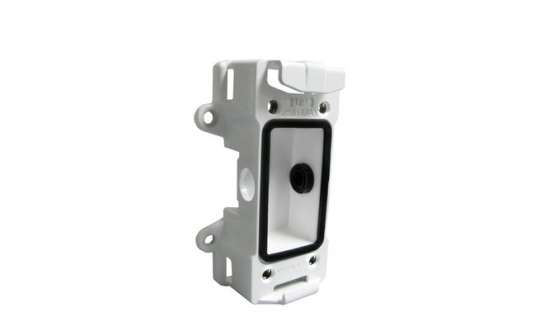

UNI-WMBB1

Aluminium Pole/Wall Mount Adapter Bracket

The UNI-WMBB1 wall/pole mount back box allows a camera housing to be mounted on an existing pole or wall, when used with a compatible wall mount bracket. It is intended for use with the UNI-WMB1 or UNI-MDB1/2/3 wall mount brackets.

Conduit holes are provided on both sides of the adapter, with two knockouts on the back. Threaded bolt inserts make installation quick and easy.

Includes two pole mounting straps.

Cast aluminium construction with stainless steel hardware. Durable powdercoated finish. Suitable for outdoor use.

Technical Specifications


Attributes

Body Construction Aluminum
Environment Outdoor
Mounting Style Pole/Wall Mount Adapter
RoHS Yes

Mechanical

Size (H x W x D) 8.1 x 5.4 x 2.8 inches (204 x 137 x 69 mm)
Weight 2 lbs. (1.0 kg)

Shipping

Weight 3 lbs. (1.4 kg)
Dimensions 9.3 x 7 x 4.5 inches (236 x 178 x 115 mm)
