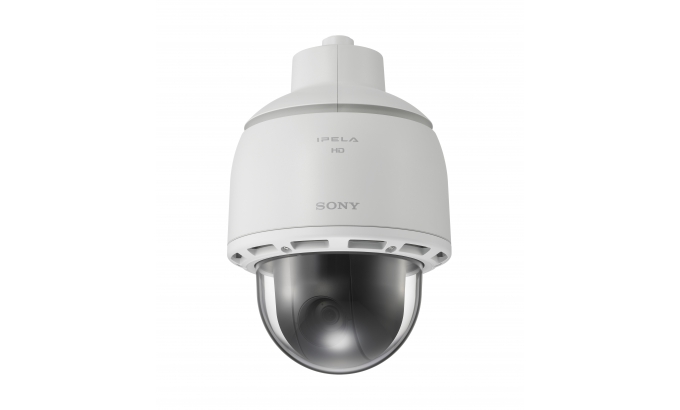

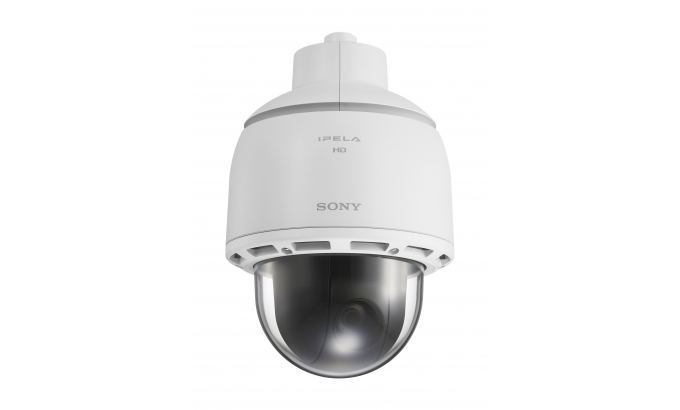

SNC-WR602C

Outdoor Unitised 720p/60 fps Rapid Dome Camera by IPELA ENGINE PRO - W Series

Optimised for critical outdoor surveillance applications, with superb image quality and advanced analytics, industry-leading pan speed and weather/vandal resistance.

The SNC-WR602C is a high-performance rapid dome network camera that’s ideal for wide-area surveillance in challenging environments – from airports, stadiums and urban areas to malls and perimeters.

The camera’s sensitive, high-resolution Exmor™ CMOS sensor is teamed with Sony’s IPELA ENGINE PRO™ processing platform, bringing on-board image processing to a new level at Full HD resolution.

IPELA ENGINE PRO delivers an extra-wide 130dB dynamic range at HD resolution to assure clear video images, even in harsh lighting environments where other cameras struggle with extremes of light and shade in the same scene. Frame rates as high as 60fps – double that of normal IP cameras – let operators recognise and assess split-second incidents in recorded footage with unprecedented precision. This advanced processing engine can even correct focal plane distortion from fast camera pans or moving objects in real time.

The SNC-WR602C allows continuous 360° PTZ operation, with the industry’s fastest pan speed of 700°/s letting an operator quickly recall preset areas of interest in a single, seamless motion. A powerful 30x optical zoom offers wide area coverage, plus the ability to grab detailed close-ups without losing clarity.

Designed for dependable round-the-clock performance in demanding outdoor environments, the unitised camera can operate in temperatures from -40°C to +50°C on 24V AC power (-30°C to +50°C with HPoE+), and is IP66/IK10 rated to resist weather and unwelcome tampering by vandals. Suitability for external use is enhanced by a Defog Image Processing feature that reduces smog or haze, while the gyroscopic image stabiliser combats camera-shake caused by vibration on a windy mounting pole or road bridge.

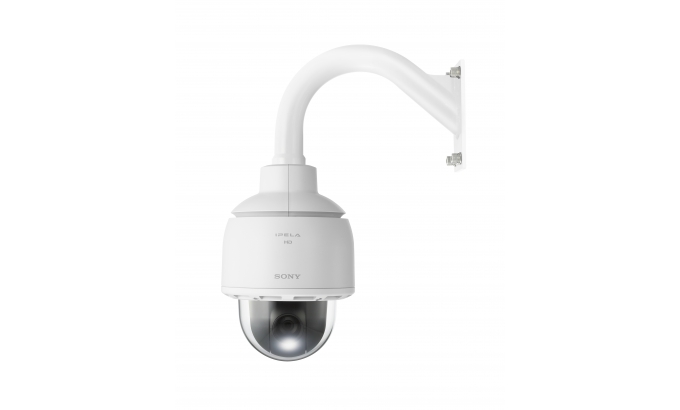

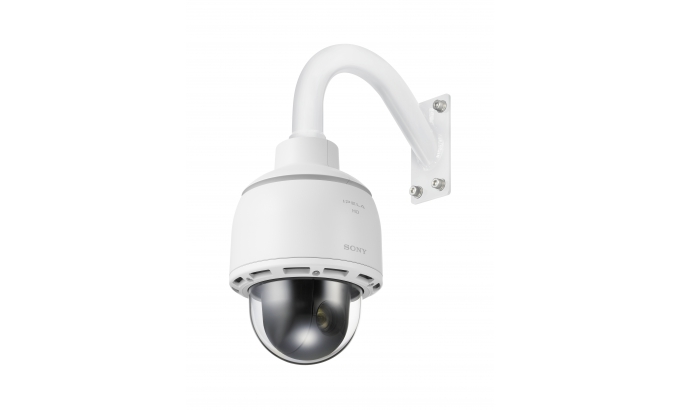

*Product shown with housing accessory. Housing accessory not included.

Technical Specifications

Please be aware that the features/specifications can differ from country to country

Camera

Image Sensor 1/3-type progressive scan Exmor CMOS sensor
Number of Effective Pixels Approx. 1.37 Megapixels
Signal System NTSC/PAL (switchable)
Sync System Internal synchronization
Minimum Illumination (50 IRE) Color: 0.2 lx (F1.6, View-DR Off, VE Off, AGC On, 1/30 s, 30 fps)
B/W: 0.015 lx (F1.6, View-DR Off, VE Off, AGC On, 1/30 s, 30 fps)
Minimum Illumination (30 IRE) Color: 0.12 lx (F1.6, View-DR Off, VE Off, AGC On, 1/30 s, 30 fps)
B/W: 0.009 lx (F1.6, View-DR Off, VE Off, AGC On, 1/30 s, 30 fps)
Dynamic Range Equivalent to 130 dB with View-DR technology
S/N Ratio (Gain 0 dB) More than 50 dB
Gain Auto/Manual
Shutter Speed 1/1 s to 1/10,000 s
Exposure Control Full auto, Shutter priority, Iris priority, Manual
White Balance ATW, ATW-PRO, Indoor, Outdoor, Fluorescent lamp, Mercury lamp, Sodium vapour lamp, Metal halide lamp, White LED, One push WB, Manual
Lens Auto-focus zoom lens
Powered Zoom Yes
Zoom Ratio Optical zoom 30x
Digital zoom 12x
Total zoom 360x
Powered Focus Yes
Auto Focus Yes
Horizontal Viewing Angle 58.3° to 2.1°
Vertical Viewing Angle 34.8° to 1.2°
Focal Length f = 4.3 mm to 129.0 mm
F-Number F1.6 (Wide) to F4.7 (Tele)
Minimum Object Distance 300 mm
Pan/Tilt Angle (powered) 360 ° endless rotation/220 °
Pan Speed 700 °/s (max.) *1
Tilt Speed 700 °/s (max.) *1
Number of Preset Positions 256
Number of Tour Programs 5
  • See more detail with HD quality

    The Exmor CMOS sensor captures crisply detailed HD video images (maximum resolution 1280 x 720), even in low light.

  • Powered by IPELA ENGINE PRO

    W Series security cameras employ Sony’s IPELA ENGINE PRO platform that builds on powerful IPELA ENGINE signal processing. This provides a 130dB dynamic range at HD resolution while maintaining full frame rate up to 30 fps), or 90dB at up to 60fps and delivering a unique range of camera features. XDNR (Excellent Dynamic Noise Reduction) assures clear low-light images without motion blur, while Visibility Enhancer (VE) dynamically optimises brightness and colour reproduction on a pixel-by-pixel basis. Video analytics technologies are provided with DEPA Advanced analytics, tampering detection and face detection – each of which can trigger alarms based on user-determined rules.

  • Capture smooth, fluid movement

    Video images can be captured at a high frame rate of 60fps, allowing precise analysis when stepping through recorded footage frame by frame. It’s ideal for applications like city surveillance where it’s essential to see what’s happening with split-second accuracy.

  • Industry-leading pan performance and powerful 30x optical zoom

    An industry-leading pan speed of 700°/s enables the camera to pan quickly to areas of interest in a single, seamless motion. Powerful 30x optical zoom range allows smooth, rapid transition from wide-area coverage to high-magnification close-ups of distant subjects without sacrificing clarity.

  • Defog Image Processing

    Defog Image Processing feature uses powerful image processing to enhance pictures in fog, smog and haze conditions for clearer video images.

  • Better pictures, day or night

    True D/N (Day/Night) function automatically switches the camera to Day or Night mode, depending on ambient light levels.

  • Steadier, more stable images

    The on-board gyroscopic image stabiliser keeps video images steady and blur-free, even if the camera is subjected to buffeting from wind or traffic vibration on a pole, fence or road bridge.

  • Focal Plane Distortion Correction

    Compensates for image distortion generated in a scene by the CMOS sensor focal plane phenomenon.

  • Recording quality to suit your network

    Select CBR (constant bitrate), VBR (variable bitrate) or VBR-with-cap compression modes for optimised recording quality depending on IP network conditions.

  • Automatic recording to memory card

    Edge Storage allows automatic recording of video and audio directly to an optional SD/SDHC card for later analysis. Recording can be triggered in response to an alarm event, if there’s an attempt to tamper with the camera or in the event of network connection being temporarily lost.

  • View with your smartphone

    Securely access the camera using a smartphone or tablet (Android or iOS) to view images remotely and adjust settings.

  • Built for tough environments, with protection against tampering, water and dust

    Ideal for use in outdoor areas, the camera is IK10-rated for vandal resistance and IP66-rated against ingress by water and dust. It can operate reliably in extreme temperatures from -40°C to +50°C on 24V AC power (-30°C to +50°C with HPoE+)

  • ONVIF (Open Network Video Interface Forum) compliance

    Support for ONVIF Profile-S simplifies integration with a wide range of VMS platforms and hardware, providing video streaming and camera control. ONVIF (Open Network Video Interface Forum) defines a common protocol for the exchange of information between network video devices, including automatic device discovery and video streaming.
