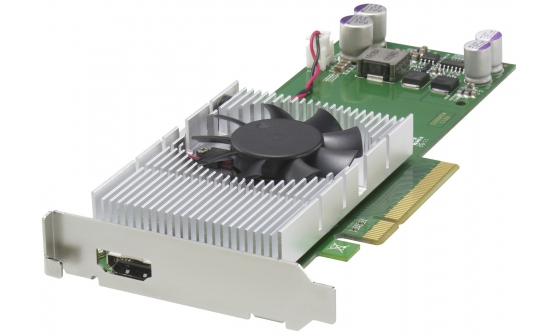

NSBK-DH05
Display acceleration board for NSR-500 series of Network Surveillance Recording Servers
The NSBK-DH05 is a display acceleration board for NSR-500 series of Network Surveillance Recording Servers, enabling HDMI output in the NSR-500 for better display performance.
-
Fast and efficient video decoding
The NSBK-DH05 supports up to 1920x1080 H.264/MPEG4 video decoding.
-
Monitor frames
The NSBK-DH05 can deliver up to 18ch (720x576), 9ch (1280x720) and 4ch (1920x1080).
-
Outstanding frames-per-second performance
The NSBK-DH05 boasts a maximum performance of 60fps (2ch) at 1920x1080 (4Mbps), 120fps (4ch) at 1280x720 (2Mbps) and 270fps (9ch) at 720x576 (1Mbps.)
-
Output performance
The NSBK-DH05 delivers AV HDMIx1 output and Video RGBx1 output.
