Sony PXW-X70 Compact XDCAM Camcorder

A powerful lightweight, Professional XDCAM, “Palm size”, 4K ready, compact camcorder with large 1.0 type CMOS sensor. (Mfr # PXW-X70)

Sony has increased the XDCAM series with PXW-X70 that is the first 4K Ready Compact XDCAM professional camcorder. The new dynamic PXW-X70 features a 1 inch type sensor which is the eight times larger than the 1/3” size usually found in this kind of camera. Sony has combined stunning picture quality, speed of shooting and robust performance into a package which is ideal for a wide range of applications from news gathering and documentary to events work.

“This first compact member of the XDCAM family brings the performance and workflow benefits associated with XAVC to an even wider range of shooting scenarios,” said Robbie Fleming, Product Marketing Manager, at Sony Professional Solutions Europe. “Over the past couple of years we’ve seen the broadcast industry really embrace the picture quality benefits associated with large sensors; the one-inch sensor at the heart of the PXW-X70 sets a new standard for colour, depth and texture in a professional compact camcorder. Coupled with the ability to upgrade to 4K, this represents a multipurpose, future-proof option for customers looking for a tough camcorder which doesn’t compromise on image.”

Key Features:

4K ready 1.0 type Exmor R CMOS sensor for a wide range of shooting conditions?

The PXW-X70 incorporates a 4K-ready 1.0 type Exmor R CMOS sensor to achieve high resolution, high sensitivity, low noise, and wide dynamic range. The sensor has 14,2 million effective pixels enhancing shooting under severe lighting conditions and providing more freedom of creative expression.

High sensitivity and high resolution

Thanks to the 1.0 Exmor R CMOS sensor, the PXW-X70 has high sensitivity 1.67 stops brighter than a 1/2.88-inch sensor. The camcorder also has higher resolution than any other camcorder in its price range. The 1.0 sensor is brighter and offers more bokeh with a shallow depth of field than 1/3-inch or 1/4.7-inch sensors.

Advanced BIONZ X image processing engine

An evolved BIONZ engine achieves more lifelike images, and enables the addition of new features that take advantage of faster processing.

AUDIO INPUT XLR-type 3-pin (female) (x2), line/mic/mic +48 V selectable
DIMENSIONS (WXHXD) 120.7 ? 103.5 ? 274.3 mm (With the accessories (lens hood, large eyecup) ,excluding the grip belt and including the projecting parts)
ZOOM RATIO 12x (optical), servo
IMAGING DEVICE 1.0-type (13.2mm x 8.8mm) back-illuminated Exmor R CMOS sensor
STORAGE TEMPERATURE -20°C to +60°C
OPERATING TEMPERATURE 0°C to 40°C
FOCAL LENGTH f=9.3 - 111.6mm equivalent to f=29.0 - 348.0mm on 35 mm lens(16:9) , equivalent to f=35.5 - 426.0mm on 35mm lens(4:3)
LENS FIT & MOUNT Fixed
VIDEO RECORDING FORMAT XAVC HD : MPEG-4 AVC/H.264 4:2:2 Long profile, AVCHD : MPEG-4 AVC/H.264 AVCHD 2.0 format compatible
POWER CONSUMPTION Approx. 5.5 W(while recording with viewfinder and XAVC HD 1080/60i 50Mbps) - Approx. 5.8 W (while recording with LCD and XAVC HD 1080/60i 50Mbps)
AUDIO OUTPUT Integrated into Multi/Micro USB jack
VIDEO OUTPUT Integrated into Multi/Micro USB jack?×1?, Composite 1.0Vp-p, 75Ω
POWER REQUIREMENT DC In: 8.4V, Battery: 6.8V / 7.2V
RECORDING FORMAT(S) (Audio): XAVC HD : Linear PCM 2ch, 24bit, 48kHz, AVCHD : Linear PCM 2ch, 16bit, 48kHz / Dolby Digital 2ch, 16bit, 48kHz, DV : Linear PCM 2ch, 16bit, 48kHz
RECORDING FRAME RATE XAVC HD (1920 x 1080)@59.94p, 50p, 50Mbps/35Mbps
VIEWFINDER 1.0cm?0.39 type?OLED Approx. 1.44M dots
3G/HD/SD-SDI OUTPUTS BNC (x1), 3G/HD/SD SMPTE 424M/292M/259M standards

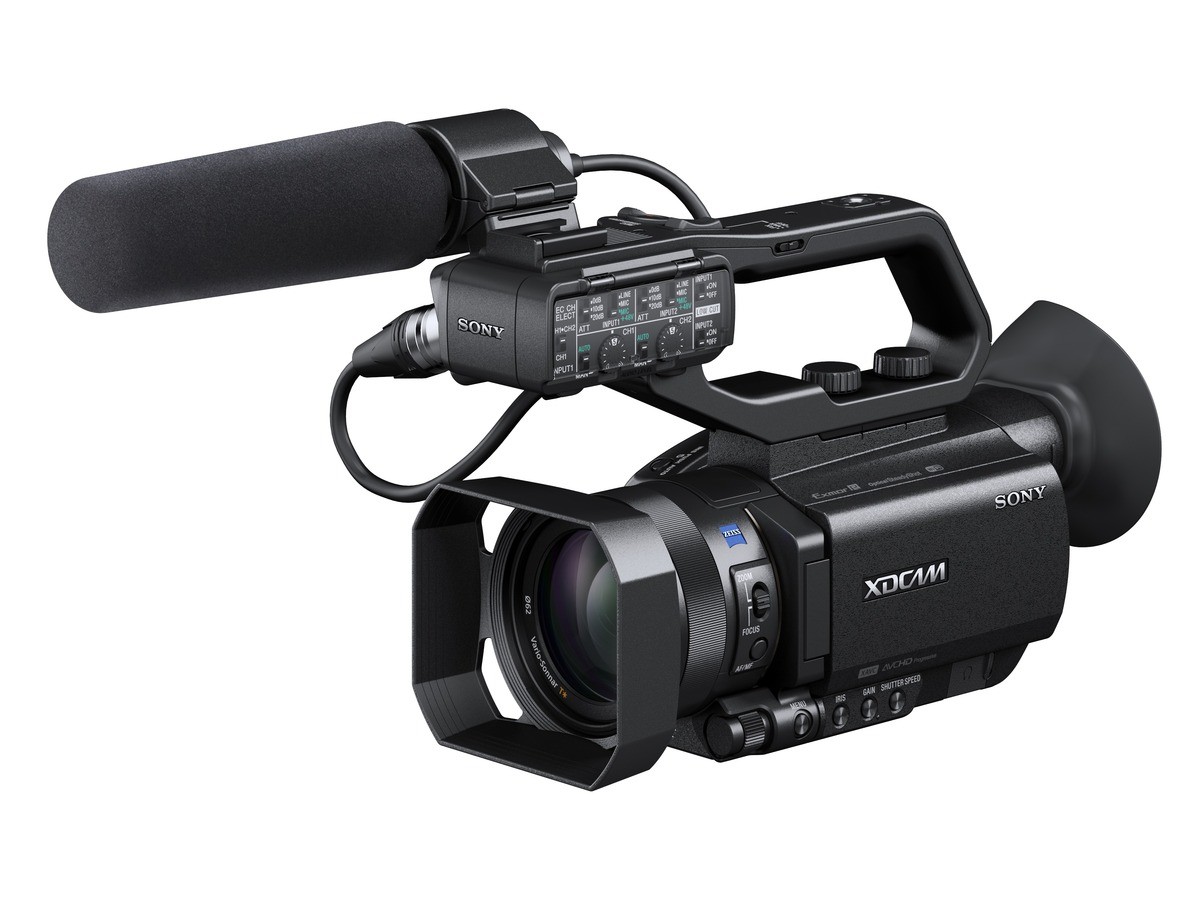

  • XLR Handle Unit with Micropone
  • Lens Hood
  • Lens cap
  • Eyecup
  • Accessory Shoe Kit
  • USB Cable
  • Rechargeable Battery Pack (NP-FV70)
  • AC Adapter AC-L200D
  • AC Power Cord
  • Wireless Remote Commander (RMT-845)
  • Standard Manufacturer's Warranty.
